功能点Feature and functions

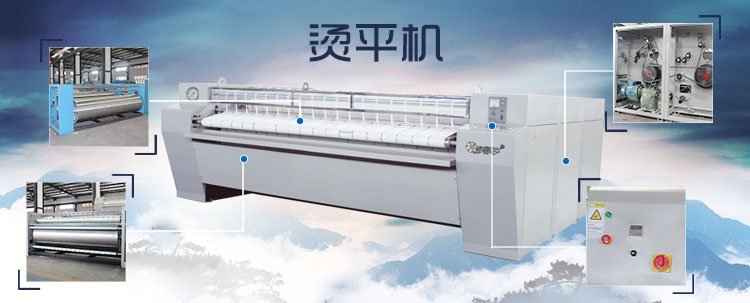

●三滚烫平机系列采用蒸汽加热,传动采用变频调速, 根据加热温度和织物厚度随意调节速度。
●在辊筒采用质不锈钢制造,表面经过磨削加工处理使用织物磨损降到。
●运行可靠,采用减速器联接皮带轮及链轮传动,并配置传动涨紧机构,运行速度。
●副辊采用喷锌处理,搞腐蚀能力强,经久耐用。
●Three rolls irons out machine uses the steam heating, the transmission uses the frequency conversion velocity modulation, according to heating temperature and fabric thickness at will adjustable speed.
●The big bowl uses the high quality stainless steel manufacture, the surface reduces lowly to after the abrasive machining processing use fabric attrition.
●The movement is reliable, uses the reduction gear joint belt pulley and the sprocket feed, and disposes the transmission to rise the tight organization, the guarantee running rate.
●All vice-rollers use spurt zinc processing, does corrosion ability, durable.
●三滚烫平机系列采用蒸汽加热,传动采用变频调速, 根据加热温度和织物厚度随意调节速度。
●在辊筒采用质不锈钢制造,表面经过磨削加工处理使用织物磨损降到。
●运行可靠,采用减速器联接皮带轮及链轮传动,并配置传动涨紧机构,运行速度。
●副辊采用喷锌处理,搞腐蚀能力强,经久耐用。
●Three rolls irons out machine uses the steam heating, the transmission uses the frequency conversion velocity modulation, according to heating temperature and fabric thickness at will adjustable speed.
●The big bowl uses the high quality stainless steel manufacture, the surface reduces lowly to after the abrasive machining processing use fabric attrition.
●The movement is reliable, uses the reduction gear joint belt pulley and the sprocket feed, and disposes the transmission to rise the tight organization, the guarantee running rate.
●All vice-rollers use spurt zinc processing, does corrosion ability, durable.
技术参数Technical parameters
型号 model 项目 item |
TYZⅡ 2500 |
TYZⅡ2800 |
TYZⅡ 3000 |
TYZⅡ 3300 |
|
熨平宽(mm) | Biggest ironing width | 2500 | 2800 | 3000 | 3300 |
熨平速度(m/min) | Ironing speed | 3-20 | 3-20 | 3-20 | 3-20 |
加热温度(℃) | Highest heating temperature | 158 | 158 | 158 | 158 |
蒸汽压力(MPA) | Steam pressure | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
蒸汽耗量(kg/h) | Steam consumption | 300 | 350 | 380 | 400 |
电机功率(KW) | Motor power | 2.2 | 2.2 | 2.2 | 2.2 |
额定电压(V) | Rated voltage | 380 | 380 | 380 | 380 |
外形(长×宽×)(mm) |
Dimension (L×W×H) |
3700× 3100× 1385 |
4000× 3100× 1385 |
4200× 3100× 1385 |
4400× 3100× 1385 |
整机重量(kg) | Machine weight | 3300 | 3500 | 3800 | 4000 |
