1、用途说明及要求：
1.1 可自动完成布草烘干等程序。
1.2 机器为热风循环结构，适用于对各种布草进行彻底的烘干（如：床单、被套、工作服、手术衣、包布、洞巾等）
1.3 配置：本机由加热器、缸体、滚筒、排风、传动结构、温度控制系统等组成，对布草自动进行烘干。

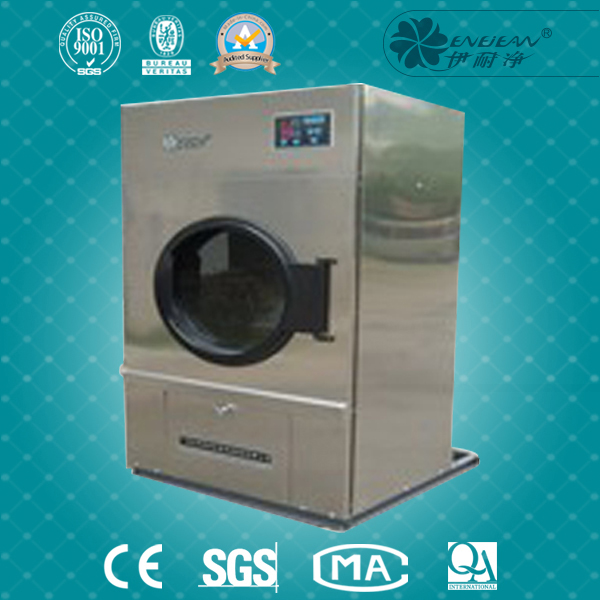

自动干衣机技术参数
1、用途说明及要求：
1.1 可自动完成布草烘干等程序。
1.2 机器为热风循环结构，适用于对各种布草进行彻底的烘干（如：床单、被套、工作服、手术衣、包布、洞巾等）
1.3 配置：本机由加热器、缸体、滚筒、排风、传动结构、温度控制系统等组成，对布草自动进行烘干。
2、技术参数及配置要求：
2.1用不锈钢面板和内筒，使用寿命长。
2.2门玻璃法兰采用金属不锈钢，磨损。
2.3面积烘干机毛绒收集器采用抽屉式，防积尘网机，直径风叶，不容易堵塞毛绒，热转换效率，方便打扫和收集毛绒。
2.4微电脑自动控制，液晶屏幕显示一目了然，具有故障和功能自检系统，并可根据不同洗涤物含水率可任意设定烘干时间、烘干温度、自动倒运转。中途开门查看自动停止运转，到设定烘干时间自动停止运转并发出停转信号提示。
2.5主电机:1.5Kw
2.6风机:1.1Kw
2.7滚筒容积:50KG
2.8烘干时间:≤45min
2.9蒸汽耗量:80kg/h
2.10进汽管道通径:Dn25
2.11风机排风量:2500m
2.12排风管口径（mm）:220*220
2.13滚筒尺寸(mm)Φ:1200x880
2.14外形尺寸(L.W.H) (mm):1330x1380x2280
2.15 产品经轻工业服装洗涤机械质量监督检测监定。
2.16 产品经过CE认证。
功能点Feature and functions
●烘干机内胆采用进口质不锈钢精心制作，整个烘干过程自动控制，的数字感温仪表显示温度，可以在操作过程中避免事故的发生，有蒸汽加热，电加热,燃气，多种型号。
●热效率，使用方便，采用功率加热器，热交换快，热能利用。
●采用直径装衣门，装卸衣物方便。
●面积毛绒收集网，在直径风叶，不易被毛绒堵塞，了风道畅通。
●电脑控制可控制时间和烘干温度，电脑面板采用轻触式按键，操作灵活。
●Dries the clothes within the aircraft gallbladder to use the import high quality stainless steel to manufacture carefully, the entire drying process automatic control, the precise digital feeling warm measuring appliance demonstration temperature, may avoid accident's occurrence in the operating process, has the steam heating, the electric hearing the fuel gas a variety of models.
●The thermal efficiency is low, the easy to operate, uses the high efficiency heater, the heat change is quick the heat energy uses high.
●Uses the large diameter to install the clothes gate, loads and unloads the clothing to be convenient.
●The big area plush collection network the large diameter wind leaf, by the plush jamming, had been guaranteed not easily the air flue is unimpeded.
●The entire computer control may the accuracy control time and the drying temperature, the computer kneading board uses touches the type pressed key lightly, the operation is flexible.
●烘干机内胆采用进口质不锈钢精心制作，整个烘干过程自动控制，的数字感温仪表显示温度，可以在操作过程中避免事故的发生，有蒸汽加热，电加热,燃气，多种型号。
●热效率，使用方便，采用功率加热器，热交换快，热能利用。
●采用直径装衣门，装卸衣物方便。
●面积毛绒收集网，在直径风叶，不易被毛绒堵塞，了风道畅通。
●电脑控制可控制时间和烘干温度，电脑面板采用轻触式按键，操作灵活。
●Dries the clothes within the aircraft gallbladder to use the import high quality stainless steel to manufacture carefully, the entire drying process automatic control, the precise digital feeling warm measuring appliance demonstration temperature, may avoid accident's occurrence in the operating process, has the steam heating, the electric hearing the fuel gas a variety of models.
●The thermal efficiency is low, the easy to operate, uses the high efficiency heater, the heat change is quick the heat energy uses high.
●Uses the large diameter to install the clothes gate, loads and unloads the clothing to be convenient.
●The big area plush collection network the large diameter wind leaf, by the plush jamming, had been guaranteed not easily the air flue is unimpeded.
●The entire computer control may the accuracy control time and the drying temperature, the computer kneading board uses touches the type pressed key lightly, the operation is flexible.
