功能点Feature and functions

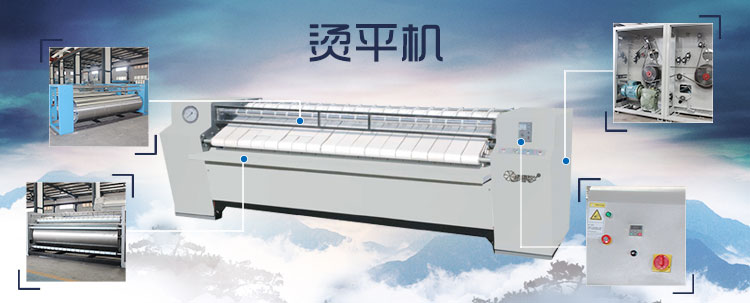

●YQZPⅠ蒸汽烫平机采用蒸汽加热,传动采用调速调整,根据加热温度和织物厚度随意调节速度。
●辊筒采用传质不锈钢制造,表面经磨削加工处理使织物磨损降到。
●运行可靠,采用减速器联接皮带轮及链轮传动,并配置传动引擎机构,运行平稳。
●副辊采用喷锌处理,抗腐蚀能力强,经久耐用。
●YQZPⅠthe steam single roller irons out machine uses thetric heating, the transmission uses the velocity modulation adjustment, according to heating temperature and fabric thickness at will adjustable speed.
●The big bowl uses the mass transfer stainless steel manufacture, the surface causes fabric attrition after abrasive machining processing to reduce lowly.
●The movement is reliable, uses the reduction gear joint belt pulley and the sprocket feed, and disposes the transmission engine organization, the guarantee movement is steady.
●All vice rollers use spurt zinc processing, corrosion resistance ability, durable.
●YQZPⅠ蒸汽烫平机采用蒸汽加热,传动采用调速调整,根据加热温度和织物厚度随意调节速度。
●辊筒采用传质不锈钢制造,表面经磨削加工处理使织物磨损降到。
●运行可靠,采用减速器联接皮带轮及链轮传动,并配置传动引擎机构,运行平稳。
●副辊采用喷锌处理,抗腐蚀能力强,经久耐用。
●YQZPⅠthe steam single roller irons out machine uses thetric heating, the transmission uses the velocity modulation adjustment, according to heating temperature and fabric thickness at will adjustable speed.
●The big bowl uses the mass transfer stainless steel manufacture, the surface causes fabric attrition after abrasive machining processing to reduce lowly.
●The movement is reliable, uses the reduction gear joint belt pulley and the sprocket feed, and disposes the transmission engine organization, the guarantee movement is steady.
●All vice rollers use spurt zinc processing, corrosion resistance ability, durable.
技术参数Technical parameters
型号 model 项目 item |
YQZPⅠ2200 | YQZPⅠ2500 | YQZPⅠ2800 | YQZPⅠ3000 | YQZPⅠ3300 | |
熨平宽(mm) | Biggest ironing width | 2200 | 2500 | 2800 | 3000 | 3300 |
熨平速度(m/min) | Ironing speed | 0-6 | 0-6 | 0-6 | 0-6 | 0-6 |
加热温度(℃) | Highest heating temperature | 158 | 158 | 158 | 158 | 158 |
蒸汽压力(MPA) | Steam pressure | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
蒸汽耗量(kg/h) | Steam consumption | 100 | 120 | 140 | 155 | 170 |
电机功率(KW) | Motor power | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |
额定电压(V) | Rated voltage | 380 | 380 | 380 | 380 | 380 |
外形尺寸(mm) |
Dimension (L×W×H) |
3400×1250×1250 | 3700×1250×1250 | 4000×1250×1250 | 4200×1250×1250 | 4400×1250×1250 |
整机重量(kg) | Machine weight | 1300 | 1350 | 1450 | 1500 | 1600 |
